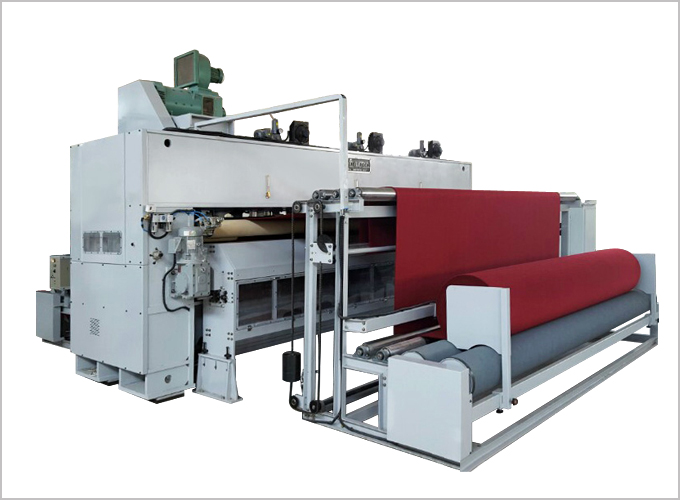

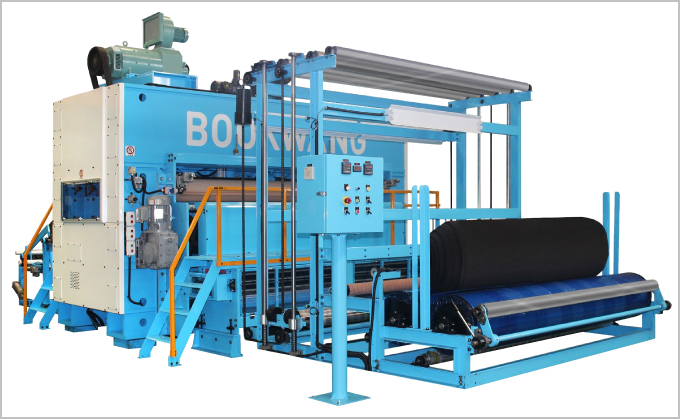

BKD-2000
Features
ㆍThis model performs welding and molding by heat process, after inputting of webs. (Machine standard-2m~6m, For Thick fabric-10mm ~150mm)
ㆍThe temperature and humidity can be controllable according to products.
ㆍCan be used for both conveyer type and oven.
ㆍCan be controllable according to air type or heating type.
ㆍCan do the customized manufacture.
Specifications
| One Step Electric Heater Type | 2,000mm | ||
| CHAMBER | L 3,000mm | 3EA | |
| MESH CONVEYER | 1,500mm/2,000mm | 1SET | |
| ELECTRIC HEATER | 50kw | 6EA | |
| CIRCULATION FAN | 7.5kw | 6SET | |
| EXHAUST FAN | 3.7kw | 2SET | |
| FEED | 2.2kw | 1SET | |
| HOT AIR INJECTION NOZZLE DEVICE | - | 6SET | |
| MAX TEMPERATURE | 250℃ | - | |
| AUTO TEMPERATURE CONRTOLLER | |||
| One Step Infrared Ray Heater Type | 1,500mm / 2,000mm | ||
| CHAMBER | L 3,000mm | 3EA | |
| MESH CONVEYER | 1,500mm/2,000mm | 1SET | |
| INFRARED RAY HEATER | 2kw | 90EA | |
| EXHAUST FAN | 3.7kw | 2SET | |
| FEED | 2.2kw | 1SET | |
| MAX TEMPERATURE | 250℃ | - | |
| AUTO TEMPERATURE CONRTOLLER | |||
■ Specifications of this machine can be changed for quality improvement.
