Features
ㆍIn this model, two sets of machines mounted on one body frame.
This model shows high performance result of two machines and quality improvement in one body frame.
ㆍThis model occupies less space. (Machines mounted from bottom and up)
ㆍHigh performance of balancing, it minimizes vibration and easily rotate in high speed swing.

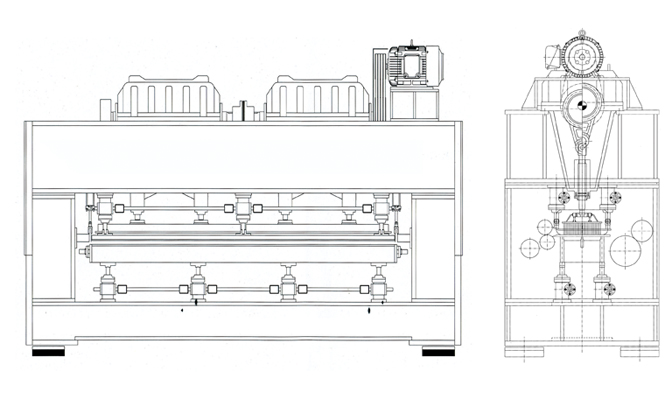

Drawings
Specifications
| Working width | Stroke / RPM | No of needles | Electric power |
| 2,500~2,800mm | 30mm / 1,500RPM 40mm / 1,300RPM |
10000, 12000, 15000 | Main 30kw, Inlet 0.75kw, Outlet 1.5kw |
| 3,000~3,400mm | 30mm / 1,400RPM 40mm / 1,200RPM |
10000, 12000, 15000 | Main 37kw, Inlet 0.75kw, Outlet 1.5kw |
| 3,600~6,000mm | 30mm / 1,300RPM 40mm / 1,100RPM |
10000, 12000, 15000 | Main 45kw~75kw, Inlet 0.75kw, Outlet 1.5kw |
| Main products | For geotextile, embedding materials for automobiles, clothes, carpets, synthetic leather. | ||
■ Specifications of this machine can be changed for quality improvement.
