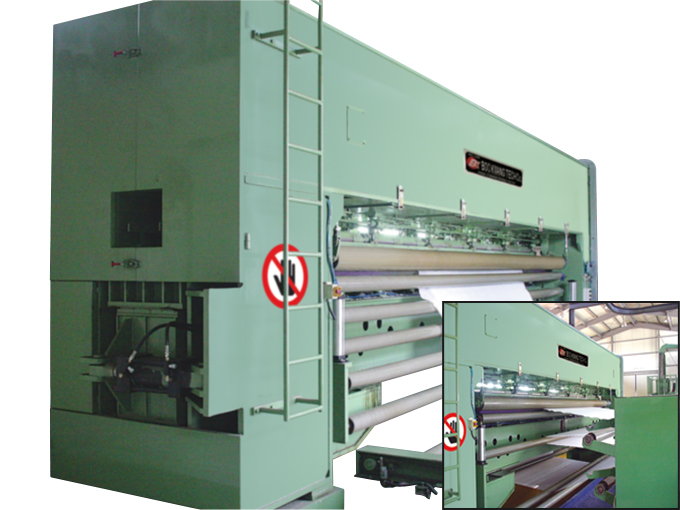

Pre Needle Punching BNOS-2800~3500(UR)
Features
ㆍThis is a newly developed machine suitable for thick fabric production.
ㆍThe oil cooler helps to maintain temperature level of oil which is produced inside of oil boxes.
ㆍThis cooling operation minimizes metal expansion fromheat generation.
ㆍDue to its special technology of oil boxes, it minimizes the abrasion of pistons and helps to perform long hour production.
Drawings
Specifications
| Working width | Stroke / RPM | No of needles | Electric power |
| 2,500~2,800mm | 50~65mm / 1,200RPM | 3000, 4000, 5000 | Main 18.5kw, Outlet 1.5kw |
| 3,000~3,400mm | 50~65mm / 1,100RPM | 3000, 4000, 5000 | Main 22kw, Outlet 1.5kw |
| 3,600~5,000mm | 50~65mm / 1,000RPM | 3000, 4000, 5000 | Main 37kw~45kw, Outlet 1.5kw |
| Main products | For clother, embedding clothers for automobiles, carpets, floorings, and synthetic leather. | ||
C.B.F BKCF-2800~3500
Features
Slip phenomenon occurs at the entrance of a pre-punching device during thick web production. To prevent this slipping of thick web, this machine compresses web and easily supplies to the entrance of of the punching machine.
Specifications
| Working width | 2500~8400mm |
| Model | BKCF-3500 |
| Length(mm) | 2224 |
| Width(mm) | 3980 |
| height(mm) | 1691 |
| Conveyor | 4PX1.5kw - 1Set |
| Finger roll | 4PX1.5kw - 1Set |
■ Specifications of this machine can be changed for quality improvement.
